Infineon’s CoolMOSTM Series 8 – the world leader in high-voltage super junction MOSFET technology.
Rutronik is expanding its MOSFET portfolio with the CoolMOSTM 8 series from Infineon. It follows on from the 600 V CoolMOSTM 7 MOSFET family, including the P7, S7, CFD7, C7, G7 and PFD7 types. The components set new standards in terms of both technology and price and are leaders in high-voltage super junction MOSFET technology. They feature an integrated, fast body diode, advanced connection technology and extremely robust commutation and are partly installed in housings with surface cooling. They are also easy to operate and integrate into existing designs. They are predestined for a wide range of power applications in the fields of telecommunications, EV charging technology or renewable energies. The MOSFETs are available in reel or tube packaging at www.rutronik24.com.
The components impress with their particularly low switch-on resistance (RDS(ON)) and can therefore achieve an increase in efficiency of 0.1% compared to the C7 version and even 0.17% compared to P7. The optimized RDS(on) also enables a higher power density, making it possible to minimize products in a silicon-based super junction (SJ) technology to a single-digit value of 7 mΩ.As MOSFETs, they represent an innovation at system level with a thermal resistance (Rth) that is between 14 % and 42 % lower, a low ringing tendency and simplified operation and integration.
As MOSFETs, they represent an innovation at system level with a thermal resistance (Rth) that is between 14 % and 42 % lower, a low ringing tendency and simplified operation and integration.
Benefits at a glance:
- World class RDS(on) * A
- Integrated fast body diode
- Excellent commutation robustness
- Advanced connection technology
- Housing with top side cooling
- Low ringing tendency
- 14 – 42% lower Rth
- Simplified portfolio
- Innovation at system level
Application examples:
- Automotive
o EV charging, solar and energy storage systems - End consumer appliances:
o Air conditioning systems for residential buildings
o Refrigerator compressors
o Chargers, adapters Networks and telecommunications: o Servers - Industry
o UPS systems
o Industrial SMPS
o Relays, circuit breakers - Lighting systems

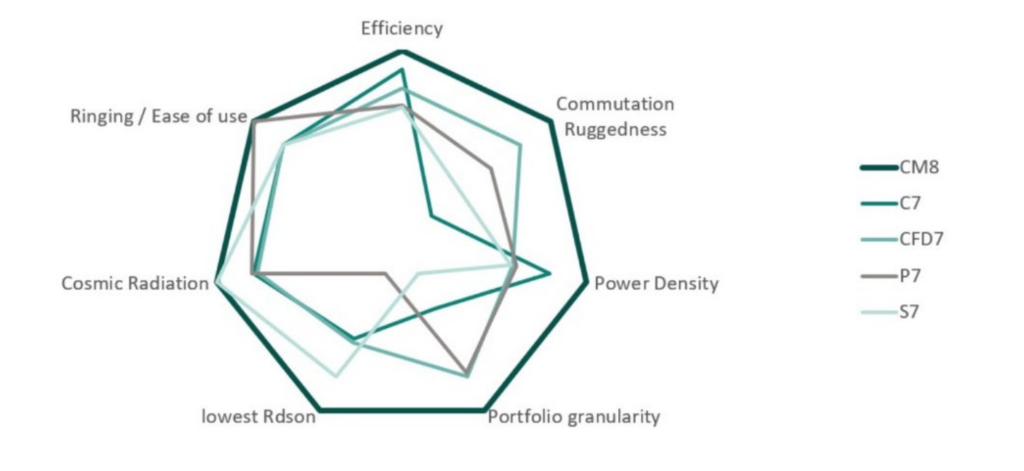

CoolMOSTM 8 and CoolMOSTM 7 by direct comparison:
